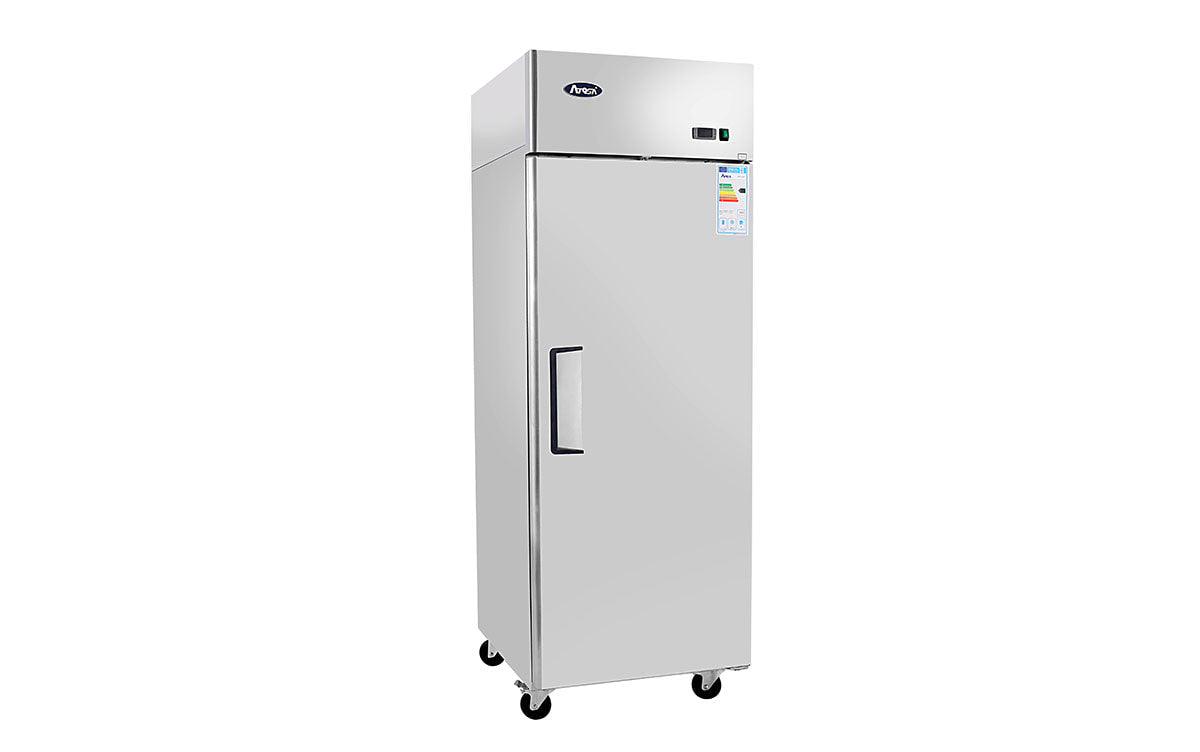

Atosa MBF8113HD Top Mounted Upright Single Door Freezer

Model: MBF8113HD

The Atosa MBF8113HD is a part of their heavy duty range and is compatible with 2/1 gastronorm pans.

Featuring casters as standard Aspera condensor and carrel digital controller the

MBF8113HD is a quality unti suitable for the busiest kitchens with a maximum ambient temperature of 43°C.

DESCRIPTION

• Top mounted compressor units
• High Grade Stainless Steel Construction
• Interior & Exterior
• Hydrocarbon Gas – R290HC / R600a
• Heavy Duty Compressor
• Self-closing and stay open door
• Rounded interior corner design
• Easy to clean black plastic door handle
• Standard safety door lock
• Magnetic door gaskets
• Rear air chamber to maintain even
• temperatures
• Double door models come with a bridging
• shelf between sections
• Climate Class 5 products

SPECIFICATION

• Model: MBF8113HD
• Exterior Dimension: (WxDxH) mm 730 x 800 x 2065
• Interior Dimension: (WxDxH) mm 610 x 635 x 1540
• Packing Dimension: (WxDxH) mm  760 x 830 x 2140
• Shelf Dimensions mm: 533 x 660 / 610 x 635 shelf
• Shelf Quantity: 3 plus base shelf / 4 total
• Shelf Loading Capacity (Kg Pc):   40
• Capacity (Litre):  670
• Net Weight (Kgs): 107
• Gross Weight (Kgs): 122
• Voltage: 220/50/1
• Power (Watts): 600
• Electrical Current (Amps):  3
• KWh/annum: 1820

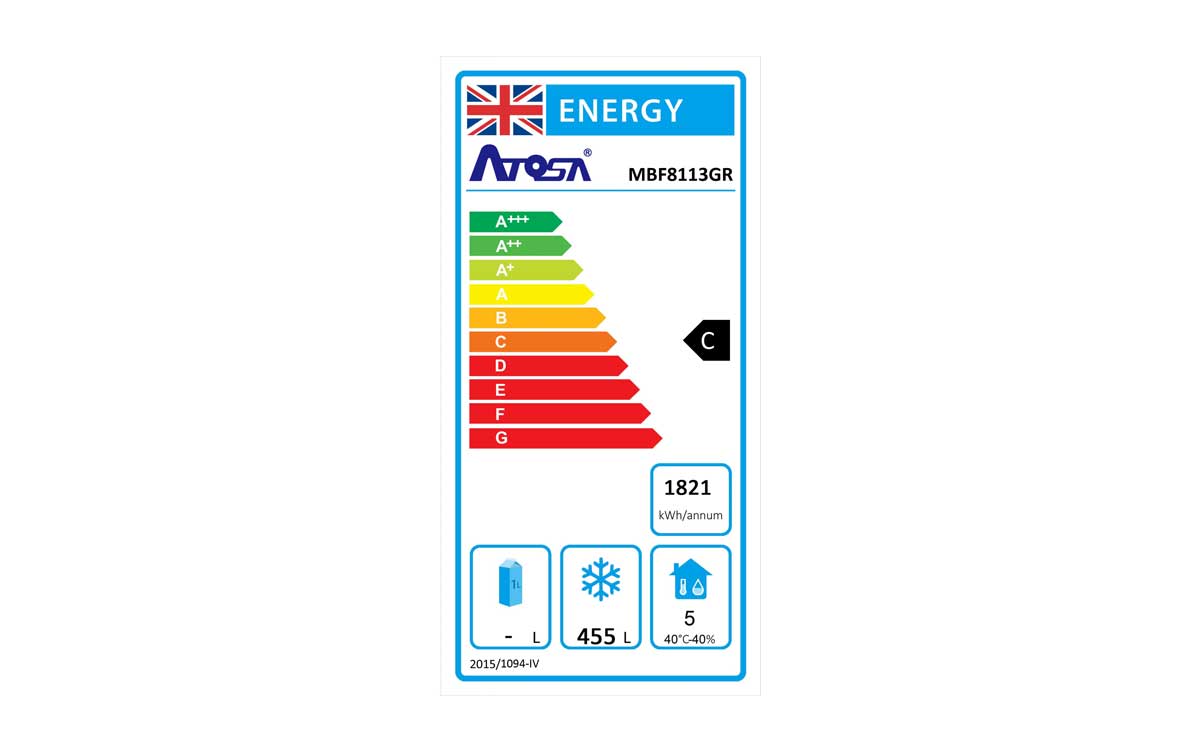

• Energy Efficiency Class: C
• Climate Class: 5
• Defrost Method: Hot Air Defrost
• Refrigerant Type / Amount: R290hc / 120g
• Cooling Method: Ventilated
• Inner Temperature (ºC):   -17ºC to -22ºC
• Insulation: Polyurethane foam
• Foaming Material: C5H10
• Castors: 4 (2 Braked on front)
• Material External / Internal:    S/S Int + Ext
• Lighting : Yes
• Door lock: Yes
