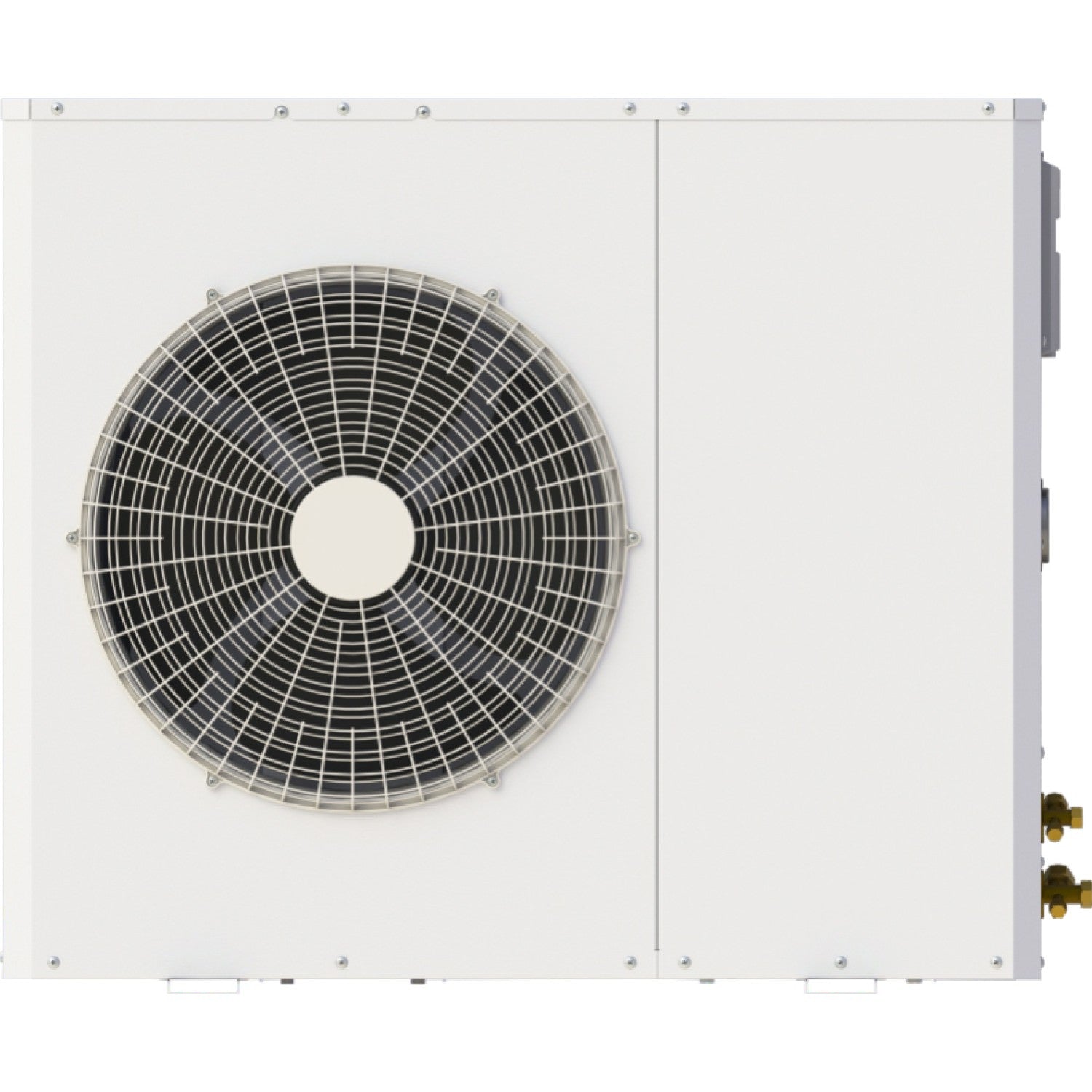

2.5HP Outdoor Condensing Unit for Cold & Freezer Rooms 995x420x675mm | GLSN25EL

The GLSN25EL is a robust 2.5HP condensing unit designed for larger cold storage and freezer room installations. With high-capacity cooling, durable housing, and efficient Sanyo compressor technology, it ensures long-term performance in demanding refrigeration environments.

Key Features

• Power: 2.5HP
• Evaporation temperature range: -45°C to -5°C
• Ambient temperature range: -7°C to 43°C
• Refrigerants: R404A, R448A, R449A
• Compressor: Sanyo rotary refrigeration (Model C-3RV359L4AAL)
• Fan: 1 × 496mm diameter, 160W, 3600m³/h airflow
• Suction inlet: 15.88mm (5/8")
• Liquid outlet: 9.52mm (3/8")
• Power supply: 220V / 50Hz/ 1 Phase
• Refrigeration capacity: 1260W at -40°C, 1580W at -35°C, 1890W at -30°C, 2310W at -25°C, 2730W at -20°C, 3095W at -15°C, 3680W at -10°C, 4100W at -5°C
• Dimensions (W×D×H): 995 × 420 × 675 mm
• Install dimension: φ12 – 585 × 380 mm

Please see under 'Specification' for detailed information.
