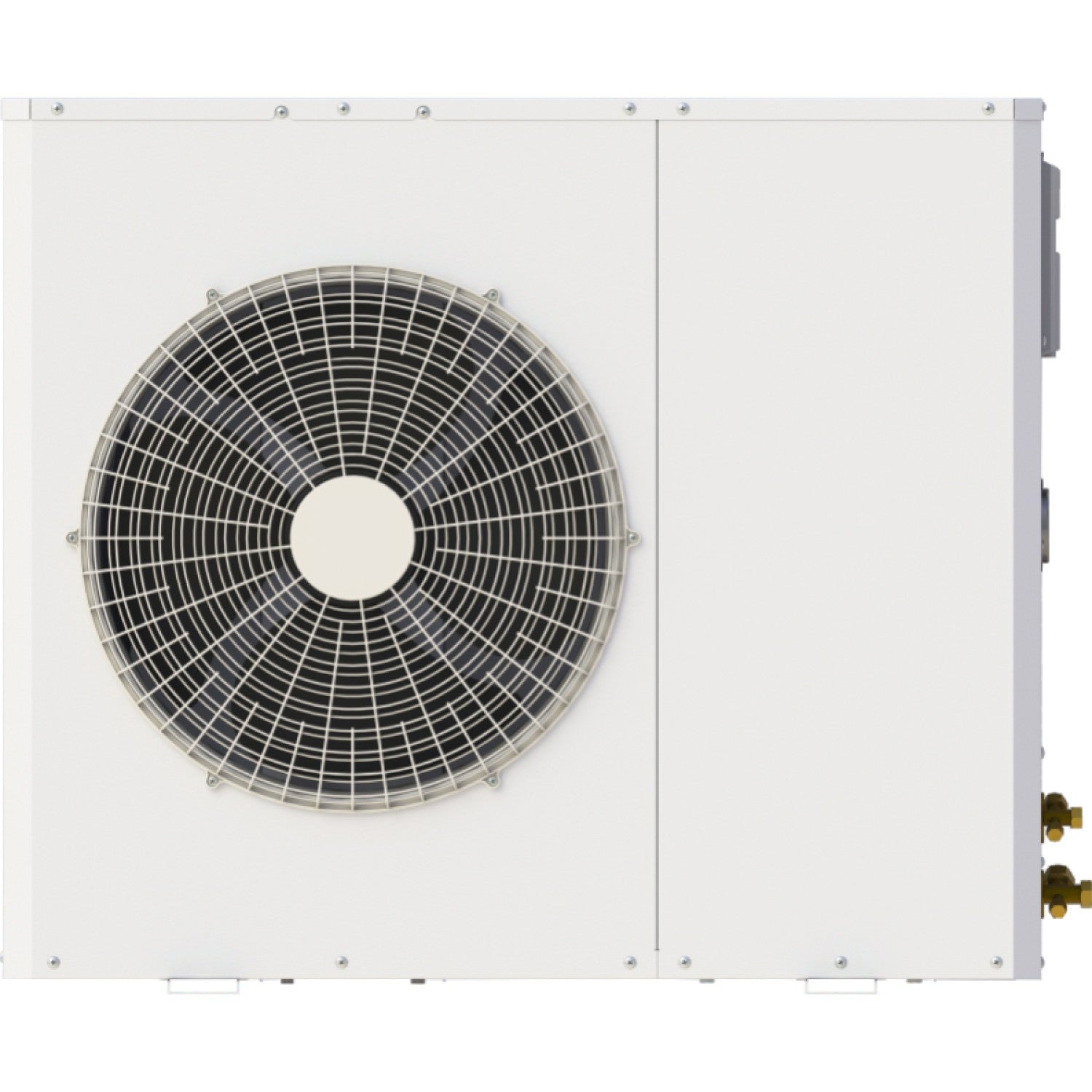

1HP Outdoor Condensing Unit for Cold & Freezer Rooms 995x420x675mm | GLSN10EL

The GLSN10EL is a 1HP medium–low temperature condensing unit designed for small cold room and freezer room applications. Powered by a Sanyo rotary refrigeration compressor, it offers stable performance with efficient cooling across a wide evaporation range from -45°C to -5°C. Compact, durable, and easy to install, this unit is ideal for commercial refrigeration needs.

Key Features

• Power: 1HP
• Evaporation temperature range: -45°C to -5°C
• Ambient temperature range: -7°C to 43°C
• Refrigerants: R404A, R448A, R449A
• Compressor: Sanyo rotary refrigeration (Model C-RV161L4AAL)
• Fan: 1 × 496mm diameter, 160W, 3600m³/h airflow
• Suction inlet: 12.7mm (1/2")
• Liquid outlet: 9.52mm (3/8")
• Power supply: 220V / 50Hz/ 1 Phase
• Refrigeration capacity: 505W at -40°C, 655W at -35°C, 810W at -30°C, 975W at -25°C, 1190W at -20°C, 1430W at -15°C, 1795W at -10°C, 2135W at -5°C
• Dimensions (W×D×H): 995 × 420 × 675 mm
• Install dimension: φ12 – 585 × 380 mm

Please see under 'Specification' for detailed information.
