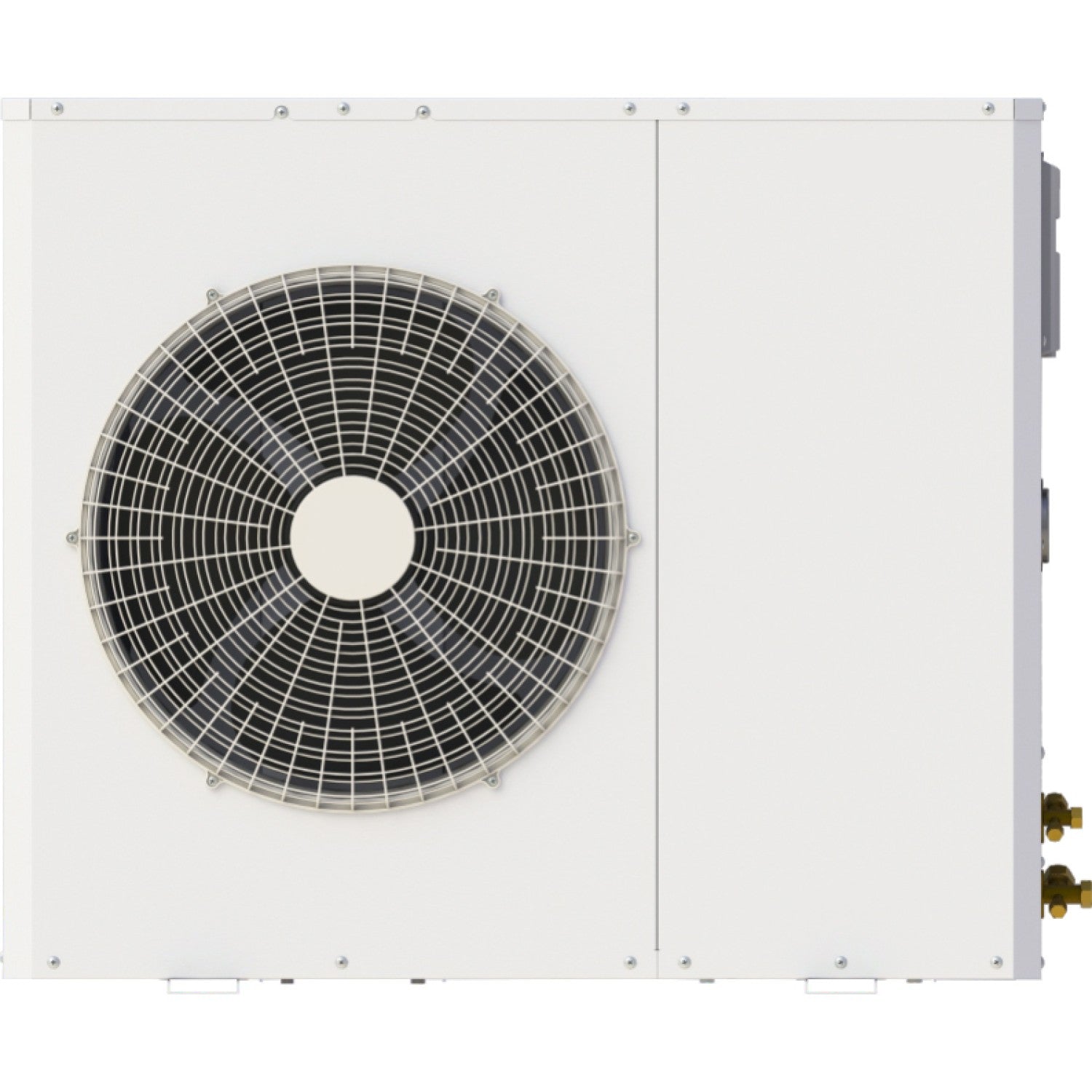

1.5HP Outdoor Condensing Unit for Cold & Freezer Rooms 995x420x675mm | GLSN15EL

The GLSN15EL is a 1.5HP condensing unit built for medium-sized cold and freezer rooms. With a Sanyo rotary compressor and wide working temperature range, it provides reliable and efficient cooling for commercial food storage, catering facilities, and retail cold rooms.

Key Features

• Power: 1.5HP
• Evaporation temperature range: -45°C to -5°C
• Ambient temperature range: -7°C to 43°C
• Refrigerants: R404A, R448A, R449A
• Compressor: Sanyo rotary refrigeration (Model C-R220L4AL)
• Fan: 1 × 496mm diameter, 160W, 3600m³/h airflow
• Suction inlet: 12.7mm (1/2")
• Liquid outlet: 9.52mm (3/8")
• Power supply: 220V / 50Hz/ 1 Phase
• Refrigeration capacity: 840W at -40°C, 1090W at -35°C, 1190W at -30°C, 1545W at -25°C, 1865W at -20°C, 2100W at -15°C, 2426W at -10°C, 2790W at -5°C
• Dimensions (W×D×H): 995 × 420 × 675 mm
• Install dimension: φ12 – 585 × 380 mm

Please see under 'Specification' for detailed information.
